3D Pie Options Tab

This tab provides options specific to the 3D Pie, 3D Doughnut, Pyramid, and Funnel Charts. While these charts may appear differently, the logic behind them is similar, as are their options. This document provides screenshots of a 3D Pie Chart; however, the options work the same over the four specified types of charts.

Pie Label/Tooltip Value Format

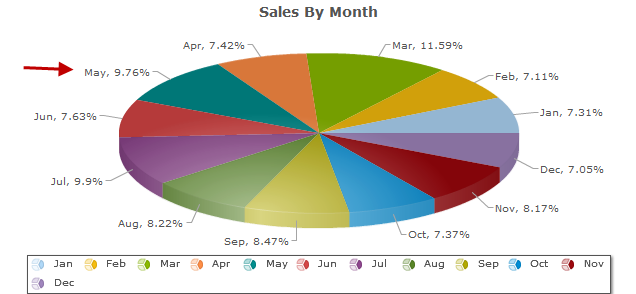

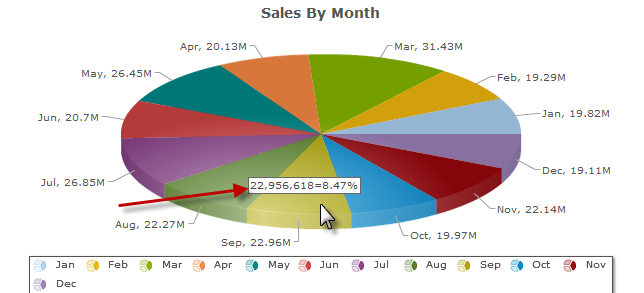

The Pie Label/Tooltip Value Formats define what values are displayed on the label (circled in blue) and the tooltip (circled in red).

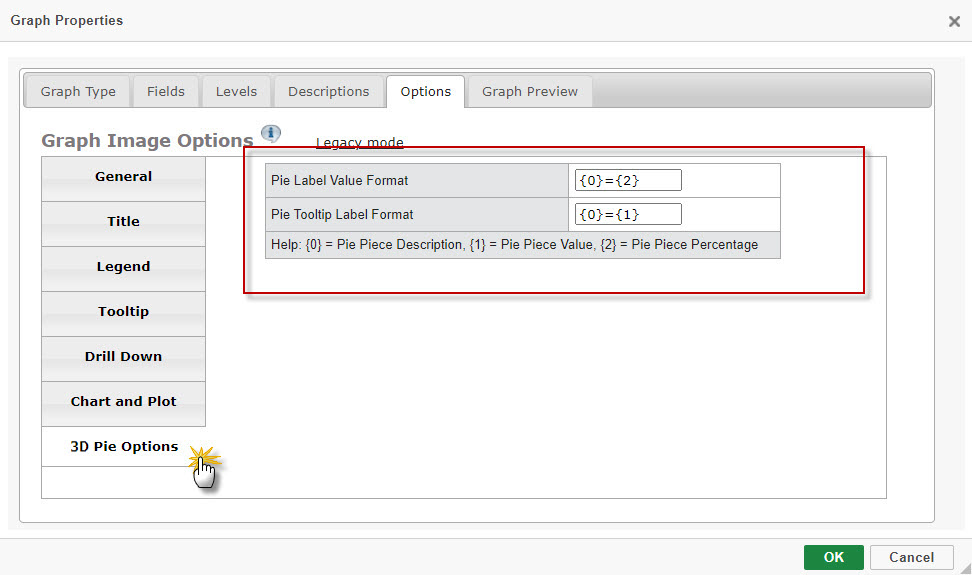

There are three values that may be used in the format, the description from the description tab (displayed by entering “{0}”), the numeric value of the pie piece (displayed by entering “{1}”), and that piece’s percentage of the pie (displayed by entering “{2}”). In the example below, the Pie Label Value Format is “{0}” and the Pie Tooltip Label Format is “{1}={2}”.

Updated on October 1, 2021
