Installing and Configuring m-Power for a Windows Server

Existing customers with new licenses, or customers that are migrating m-Power, will want to follow the documentation for existing customers.

New m-Power customers (using a Windows Server) will want to follow the steps below for installing and configuring m-Power.


  1. Download the m-Power software. To download m-Power, please contact a member of our sales team.
  2. Before continuing, be sure to download and save your mrclicense.txt file to your c:\ drive.
  3. Install m-Power by double clicking the .exe file. (Administrator rights are required for installation).
  4. The installation program will install all necessary components of m-Power (including the Java Developer Kit, as well as service installation for your Tomcat application server).
  5. Once completed, you will be required to reboot your PC. m-Power will be unable to compile new applications until after this step is completed.
  6. Finally, you should be able to test that your system was set up correctly by going to (where 999.999.999.999 is the IP address of your Windows server). Note: If you can not connect, be sure that no firewall is blocking activity on Port 8011.

Configuring m-Power

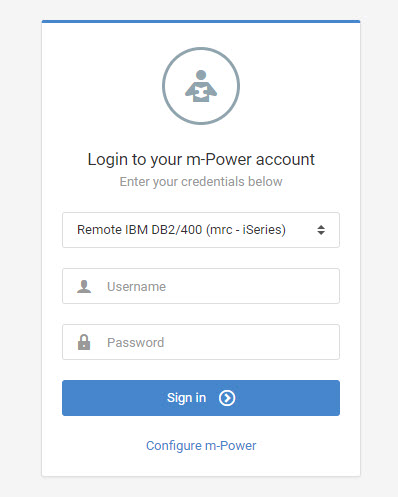

You should now be able to access the m-Power Login screen. For Username, enter your database Administrator Username. For Password, enter your database Administrator Password.

For best results, please use a database user with full authority and whose password never expires.

Click Configure m-Power.

This install step requires specific authority to perform the following database functions:

  • Create Schemas
  • Create/Alter Tables
  • Create/Drop Procedures
  • Select/Insert/Update/Delete Queries

Click Initiate Configuration.

m-Power is now finalizing the installation process on your database. The MRCAPPLLIB and MRCMPOWER schemas are currently being built on your database.

Signing into m-Power

Once the configuration is completed you will be taken to the Database Selection Screen. Select the appropriate database from the drop-down list, enter your user name and password. Click Sign In.

Once you are logged in you will see this screen:

Finally, click the “Apply Update” button when prompted. If you see an error, please ensure the admin user has full authority on the database. Once successfully completed, you are finished installing m-Power.
