Managing m-Power Installations

This documentation provides information on configuring m-Power for existing customers using a Windows server. If you are a new m-Power customer, please see the documentation for installing and configuring m-Power for new customers.

Customers Updating or Replacing a License
Customers Purchasing an Additional License
Migrate an Existing Version of m-Power

Updating or Replacing a License:

If you are replacing an expiring license, after receiving the license, it will need to be copied and overwritten into the following three locations:

  1. \mrc\development\m-power\proddata\conf
  2. \mrc\development\m-power\mrcjava
  3. \mrc\production\m-power\mrcjava (all production instances)

Both the production and development Tomcat will then need to be restarted.

For Customers Purchasing Additional Licenses:

If you have purchased an additional license, you will be sent a new license file via email. This new license will entirely replace the existing license. After receiving this license, it will need to be copied and overwritten into the following three locations:

  1. \mrc\development\m-power\proddata\conf
  2. \mrc\development\m-power\m-power\mrcjava
  3. \mrc\production\m-power\m-power\mrcjava (all production instances)

After the file is in place, you will need to restart both the production and development Tomcat in order for this license to take effect.

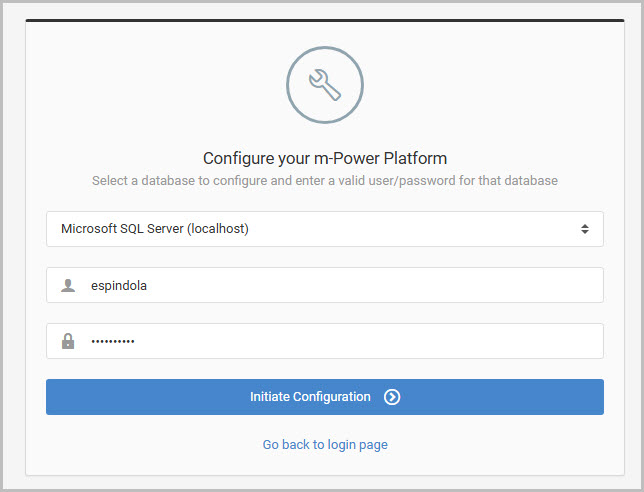

Each newly licensed database will now need to be configured. To do so, open the sign-in screen in the m-Power interface and click the "Set up m-Power" link. Once in the Software Configuration screen, select your newly licensed database, and enter your credentials. These credentials need to have full authority over the database. This step will need to be done for each of your new databases that you have not worked over previously.

If you are migrating m-Power to a new server:

Note: First, make sure your existing installation of m-Power is at the very latest update. The m-Power update can be downloaded in the customer portal. Do not continue until this step is done. Once the existing m-Power has been updated, proceed to migrating to the new server:

Migrating m-Power exactly as-is
Migrating m-Power with changes

Migrating m-Power exactly as-is

If the new server meets the following conditions, please proceed with the instructions in this section. If any of the below conditions are not met, please move to the next section.

  • m-Power versions are the same.
  • m-Power folder locations are the same.
  • Tomcat ports are the same.
  • Database stays the same.

  1. Download the m-Power software. To download m-Power, please visit the migration page of your customer portal or contact a member of our sales team.
  2. Before continuing, download and save your mrclicense.txt file to your c:\ drive.
  3. Install m-Power by double clicking the .exe file. (Administrator rights are required for installation).
  4. The installation program will install all necessary components of m-Power (including the Java Developer Kit, as well as service installation for your Tomcat application server).
  5. Once completed, you will be required to reboot your server. m-Power will be unable to compile new applications until after this step is completed.
  6. At this point, you should be able to test that your system was set up correctly by going to (where 999.999.999.999 is the IP address of your Windows server). Note: If you can not connect, be sure that no firewall is blocking activity on Port 8011.
  7. Finally, click the "Admin Menu" button in the navigation bar. Then click "System Management", then "Version & Software Update." On this screen, click "Apply Update". If you see an error, please ensure your user has full authority on the database.
  8. Copy the entire m-Power folder from the old server to the new installation. Restart Tomcat.

You should now be able to login to m-Power and access all dictionaries and applications from your old server.

Migrating m-Power with changes

If there are any aspects of the migration that are changing, you will have to manually move different folders or files to the new installation. Please follow these instructions:

  1. Download the m-Power software. To download m-Power, please visit the migration page of your customer portal or contact a member of our sales team.
  2. Copy and save your mrclicense.txt file to your c:\ drive. m-Power is licensed by your database's IP address. If only your server is changing and your database will remain the same, you can use your old license. If your database IP is changing, you must contact us at your earliest convenience for a new license key.
  3. Install m-Power by double clicking the .exe file. (Administrator rights are required for installation).
  4. Once completed, you will be required to reboot your server. m-Power will be unable to compile new applications until after this step is completed.
  5. At this point, you should be able to test that your system was set up correctly by going to (where 999.999.999.999 is the IP address of your Windows server). Note: If you can not connect, be sure that no firewall is blocking activity on Port 8011.
  6. Finally, click the "Admin Menu" button in the navigation bar. Then click "System Management", then "Version & Software Update." On this screen, click "Apply Update". If you see an error, please ensure your user has full authority on the database. Once successfully completed, you are finished installing m-Power.
  7. To move your runtime applications, the entire mrcjava folder can be copied to the new m-Power folder. Be sure to do this for both development and production, if necessary.
  8. To move your dictionary settings, move the /proddata/conf/mpower-config-DICTIONARY.xml files where DICTIONARY is the name of your used dictionaries. No need to repeat with production.
  9. To move your interface settings, move the mrcwebgui folder to the new installation. No need to copy to production.
  10. If applicable, move any customized Tomcat files to the new server. (i.e. /tomcat/conf/web.xml or /tomcat/conf/server.xml)

Depending on what might be changing in your server migration, please find the bullet(s) that apply to you:

  • If you are on an embedded database: Copy the /derby folder to the new installation. No need to repeat for production. Check if you are running an embedded database from the Admin Menu > System Management > Version & Software Update.
  • If you are an Microsoft SQL Server customer: Copy /tomcat/lib/sqljdbc4.jar to the new /tomcat location. Repeat for production.
  • If the m-Power folder locations change: Update the derby path in the /mrcwebgui/WEB-INF/classes/mrc-spring-context.xml file and the context path in the /tomcat/conf/server.xml.
  • If the Tomcat Ports change: In the new server's /tomcat/conf/server.xml file, find the default connector port="8011″ and change this to the appropriate port where tomcat is installed. Repeat as needed for production.

Congratulations -– You have successfully moved m-Power to your new Windows server.

Created: February 29, 2008 | Modified: June 12, 2017
